Supply Pros Plus

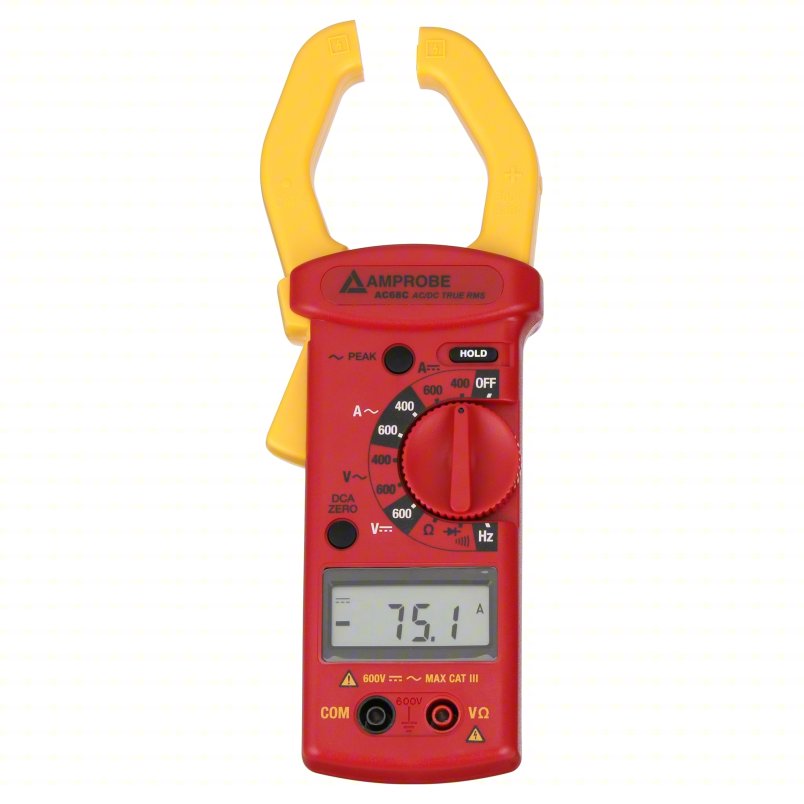

AMPROBE Digital Clamp Meter: Clamp-Jaw Jaw, CAT II 600V/CAT III 300V, TRMS, 600 A Max. AC Current
AMPROBE Digital Clamp Meter: Clamp-Jaw Jaw, CAT II 600V/CAT III 300V, TRMS, 600 A Max. AC Current
Regular price
$580.80 USD
Regular price
Sale price
$580.80 USD
Quantity
Couldn't load pickup availability
Product Details
- Catalog Page
- 518
- Brand
- AMPROBE
- Jaw Style
- Clamp-Jaw
- Safety Rating
- CAT II 600V; CAT III 300V
- AC Response Calculation
- TRMS
- Calibration Certificate Included
- No
- Max. AC Current
- 600 A
- Max. DC Current
- 600 A
- Max. AC Voltage
- 600 V
- Max. DC Voltage
- 600 V
- Parameters Measured
- AC Voltage
- DC Voltage
- AC Current
- DC Current
- Frequency
- Resistance
- Bluetooth Compatible
- No
- Current Leakage Testing
- No
- Data Logging
- Yes
- Dustproof
- No
- Instrument Counts
- 4,000
- Intrinsically Safe
- No
- Removable Screen
- No
- Thermal Imaging
- No
- Waterproof
- No
- Max. Resistance
- 4 kiloohm
- Auto Ranging
- Yes
- Audible Continuity
- Yes
- Jaw Opening
- 1.57 in
- Data Hold
- Yes
- Display Type
- LCD

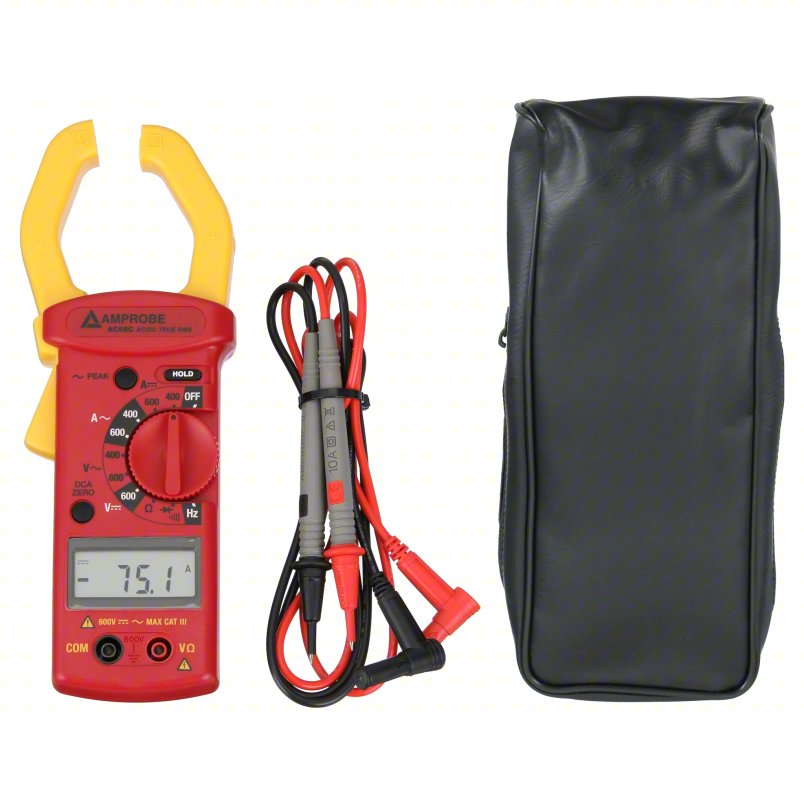

- Includes
- AC68C; Carrying Case; Test Leads
- Manufacturer Part Number
- AC68C
- Battery Size
- 9V
- AC Current Measurement Resolution
- 0.1 A
- AC Voltage Measurement Resolution
- 0.1 V
- DC Current Measurement Resolution
- 0.1 A
- DC Voltage Measurement Resolution
- 1 V
- Resistance Measurement Resolution
- 4 kiloohm
- Frequency Measurement Resolution
- 4 kHz
- Basic AC Current Accuracy
- +/-2 % of Reading + 5 Digits
- Basic AC Voltage Accuracy
- ±1.20% of Reading + 5 Digits
- Basic DC Current Accuracy
- +/-2 % of Reading + 5 Digits
- Basic DC Voltage Accuracy
- ±0.75% of Reading + 2 Digits
- Frequency Measurement Accuracy
- ±0.50% of Reading + 5 Digits
- Resistance Measurement Accuracy
- +/-1 % of Reading + 5 Digits
- Manufacturers Warranty Length
- 1 yr
- Calibration Frequency
- 60 Hz
- Diode Test
- Yes
- Peak Hold
- Yes
- Frequency Counter
- 20 KHz; 4 KHz
- Maximum Conductor Size
- 1.30 in (35mm)
- Sub-brand
- Amprobe(R)
- Minimum AC Current Measurement
- 400 A
- Minimum DC Current Measurement
- 400 A
- Minimum AC Voltage Measurement
- 400 V
- Auto Power Off
- Yes
- Batteries Included
- Yes
- Battery Access
- Yes
- Maximum Frequency Measurement
- 20 kHz
- Minimum Frequency Measurement
- 4 kHz
- UNSPSC
- 41113601
- Country of Origin
- Taiwan (subject to change)
- Product Description
Clamp-jaw meters have iron jaws sheathed in plastic that fasten around different types of conductors to measure electrical current. These instruments show measurements on a large digital display.
