Supply Pros Plus

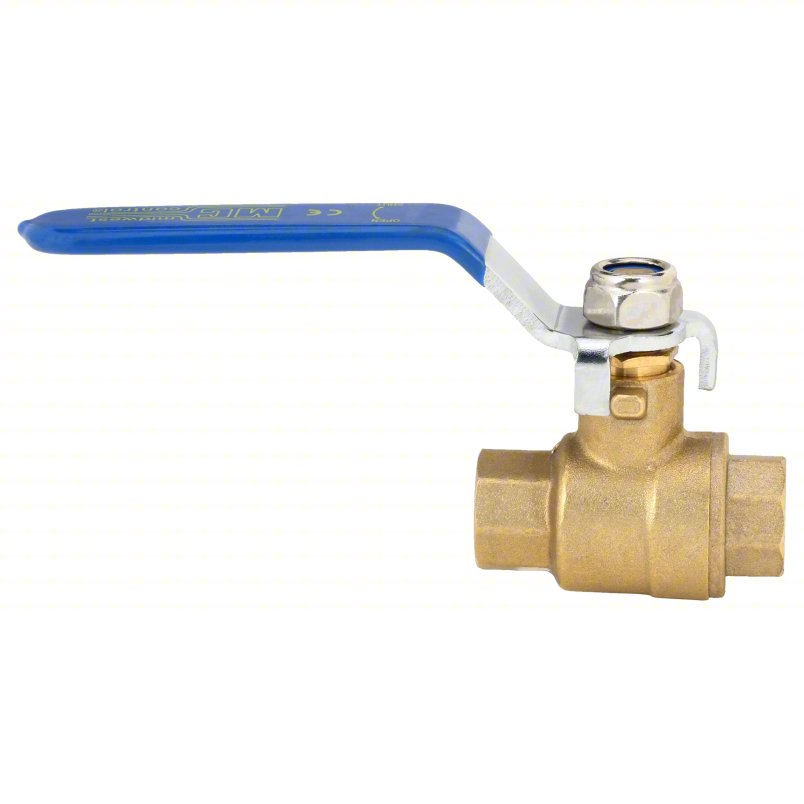

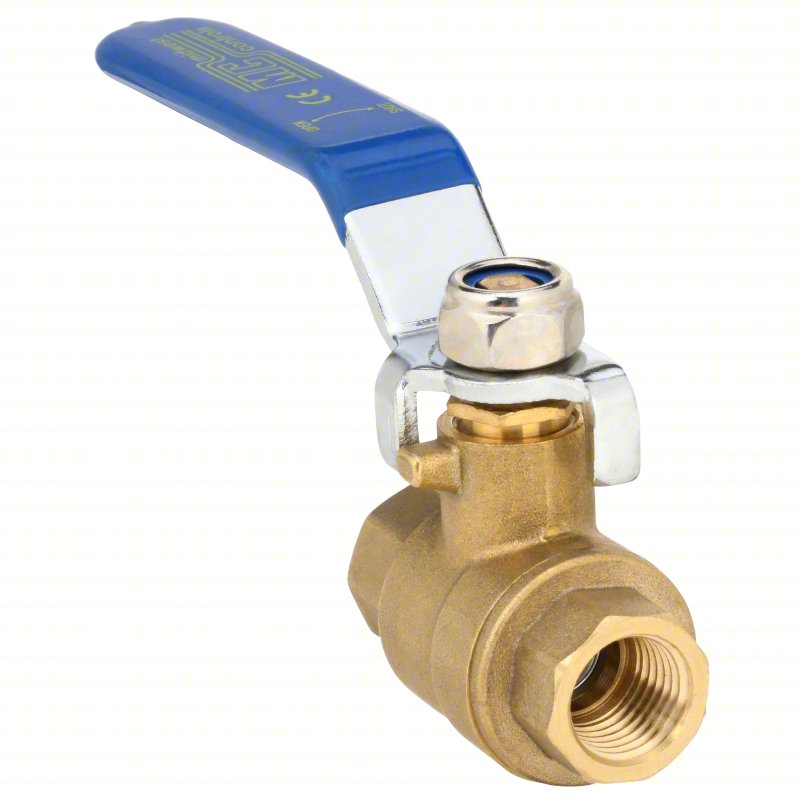

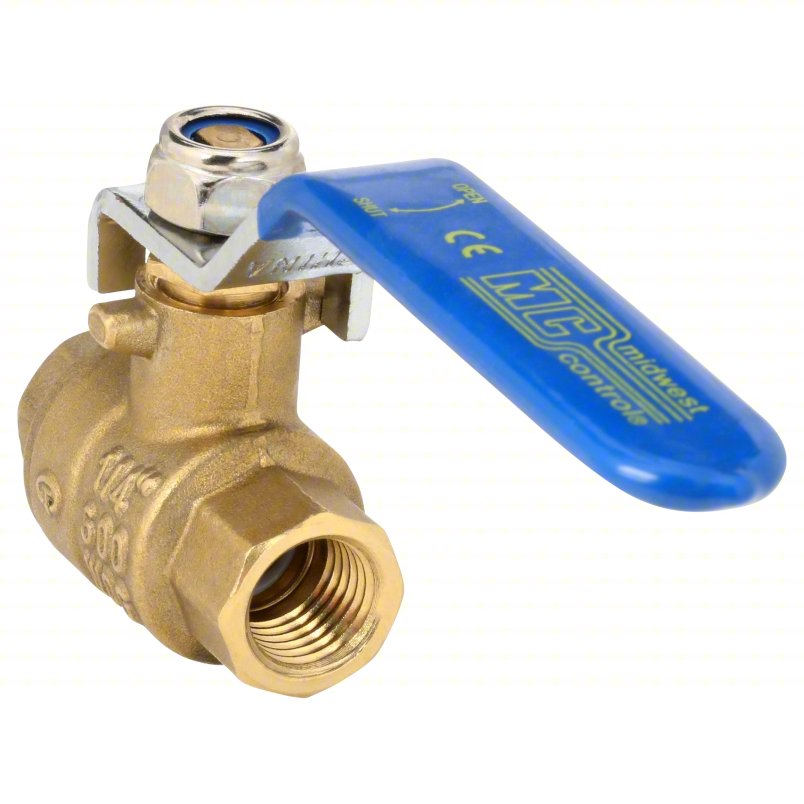

APPROVED VENDOR Manual Two-Way Ball Valve: 1/4 in, Brass, Straight, FNPT x FNPT, Full Port Ball Port
APPROVED VENDOR Manual Two-Way Ball Valve: 1/4 in, Brass, Straight, FNPT x FNPT, Full Port Ball Port
Regular price
$11.33 USD
Regular price
Sale price
$11.33 USD
Quantity
Couldn't load pickup availability
Product Details
- Catalog Page
- 2738
- Brand
- APPROVED VENDOR
- Manufacturer Part Number
- G-F600-25
- For Media
- Air; Steam; Water
- Body Material
- Brass
- Valve Construction
- Two-Piece
- Valve Body Style
- Straight
- Ball Port Style
- Full Port
- Connection Type - Side 1
- NPT
- Connection Gender - Side 1
- Female
- Connection Size - Side 1
- 1/4 in
- Connection Type - Side 2
- NPT
- Connection Gender - Side 2
- Female
- Connection Size - Side 2
- 1/4 in
- Max. Pressure (CWP)
- 600 psi
- Max. Pressure (Steam)
- 150 psi
- Max. Pressure (Combustible Gas)
- Not Rated
- 3-A Compliance
- Not Rated
- Standards
- ANSI B1.20.3
- Vacuum Service Rating
- 29 in Hg
- Coefficient of Volume (Cv)
- 8.23
- Handle Material
- Chrome-Plated Carbon Steel
- Handle Color
- Blue
- Ball Material
- Chrome-Plated Brass
- Seat Material
- PTFE
- Seal Material
- PTFE
- Stem Material
- Brass
- Handle
- Lever
- Stem Type
- Blowout Resistant
- Media Temp. Range
- 0 °F to 350 °F
- Vented Ball Valve
- Non-Vented
- Overall Length
- 4.83 in
- Nominal Valve Size
- 1/4 in
- UNSPSC
- 40141607
- Country of Origin
- China (subject to change)
- Product Description
Brass ball valves have one inlet and one outlet port, are corrosion resistant and suitable for use with oil and compressed gas. They're used in commercial and industrial applications, and they open and close with a handle.
