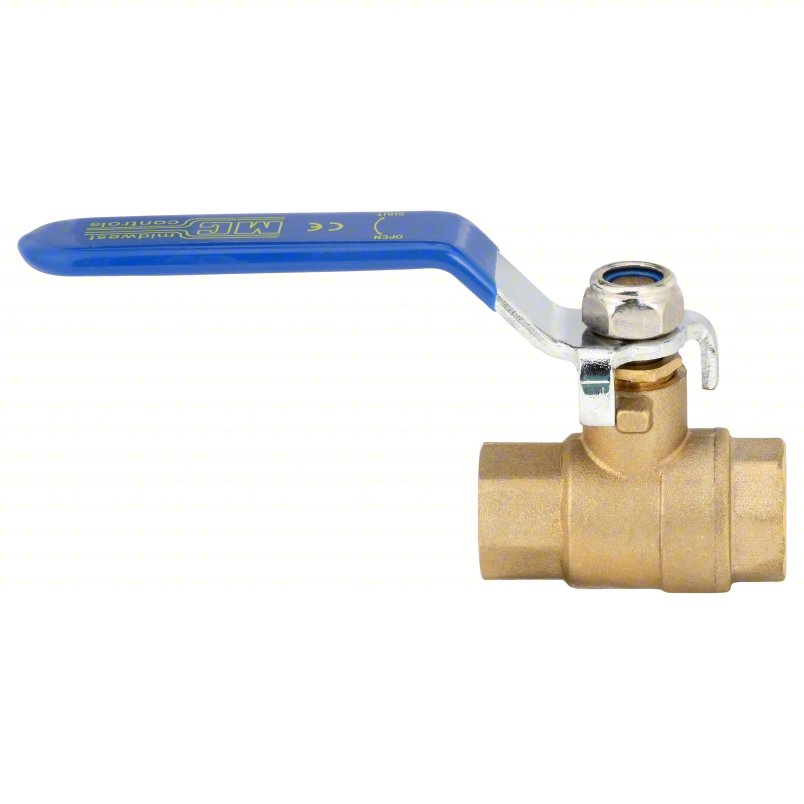

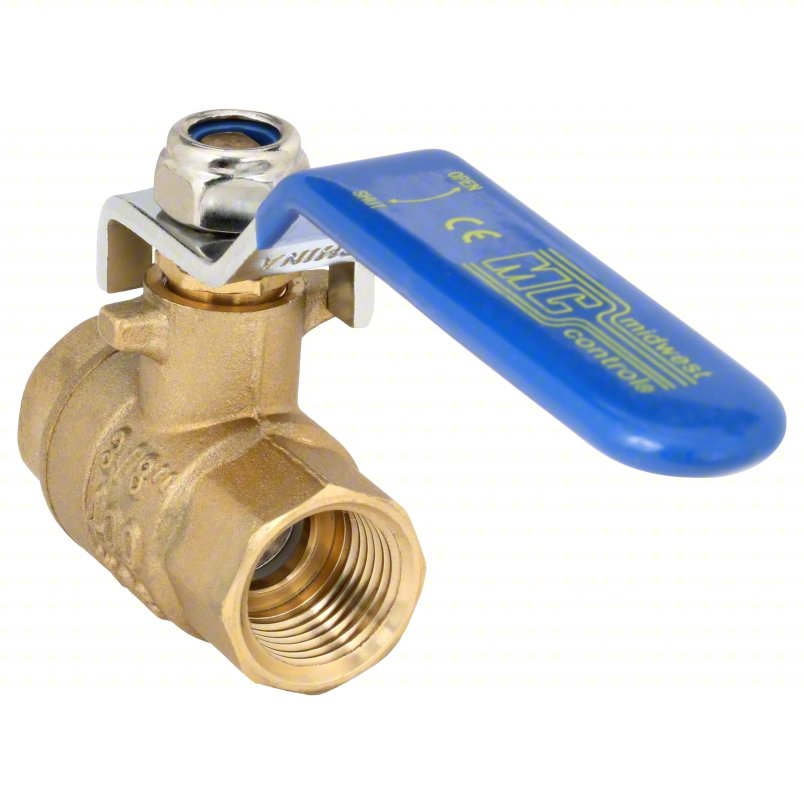

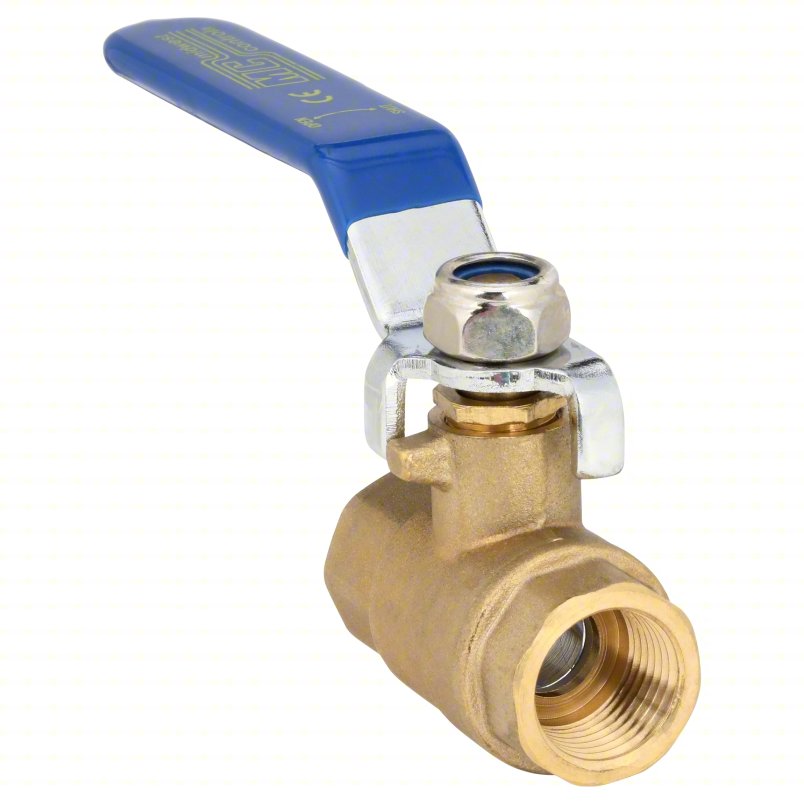

APPROVED VENDOR Manual Two-Way Ball Valve: 3/8 in, Straight, FNPT x FNPT, Full Port Ball Port, Lever
APPROVED VENDOR Manual Two-Way Ball Valve: 3/8 in, Straight, FNPT x FNPT, Full Port Ball Port, Lever
Regular price
$10.50 USD
Regular price
Sale price
$10.50 USD
Quantity
Couldn't load pickup availability
Product Details
- Catalog Page
- 2740
- Brand
- APPROVED VENDOR
- Manufacturer Part Number
- 32J028
- For Media
- Air; Oil; Steam; Water
- Valve Construction
- Two-Piece
- Valve Body Style
- Straight
- Ball Port Style
- Full Port
- Connection Type - Side 1
- NPT
- Connection Gender - Side 1
- Female
- Connection Size - Side 1
- 3/8 in
- Connection Type - Side 2
- NPT
- Connection Gender - Side 2
- Female
- Connection Size - Side 2
- 3/8 in
- Max. Pressure (CWP)
- 400 psi
- Max. Pressure (Steam)
- 150 psi
- 3-A Compliance
- Not Rated
- Vacuum Service Rating
- 29 in Hg
- Coefficient of Volume (Cv)
- 8.23
- Handle Material
- PVC
- Steel
- Handle Color
- Blue
- Ball Material
- Chrome-Plated Brass
- Seat Material
- PTFE
- Seal Material
- PTFE
- Stem Material
- Brass
- Handle
- Lever
- Stem Type
- Blowout Resistant
- Media Temp. Range
- -20 °F to 356 °F
- Vented Ball Valve
- Non-Vented
- Cleaned and Bagged
- Not Cleaned and Bagged
- Overall Length
- 1.73 in
- Handle Length
- 3.46 in
- Handle Height
- 1.68 in
- Valve Body Color
- Brass
- Manufacturer Warranty
- 3 yr
- Nominal Valve Size
- 3/8 in
- UNSPSC
- 40141607
- Country of Origin
- Varies (subject to change)
- Product Description
Brass ball valves have one inlet and one outlet port, are corrosion resistant and suitable for use with oil and compressed gas. They're used in commercial and industrial applications, and they open and close with a handle.
