Supply Pros Plus

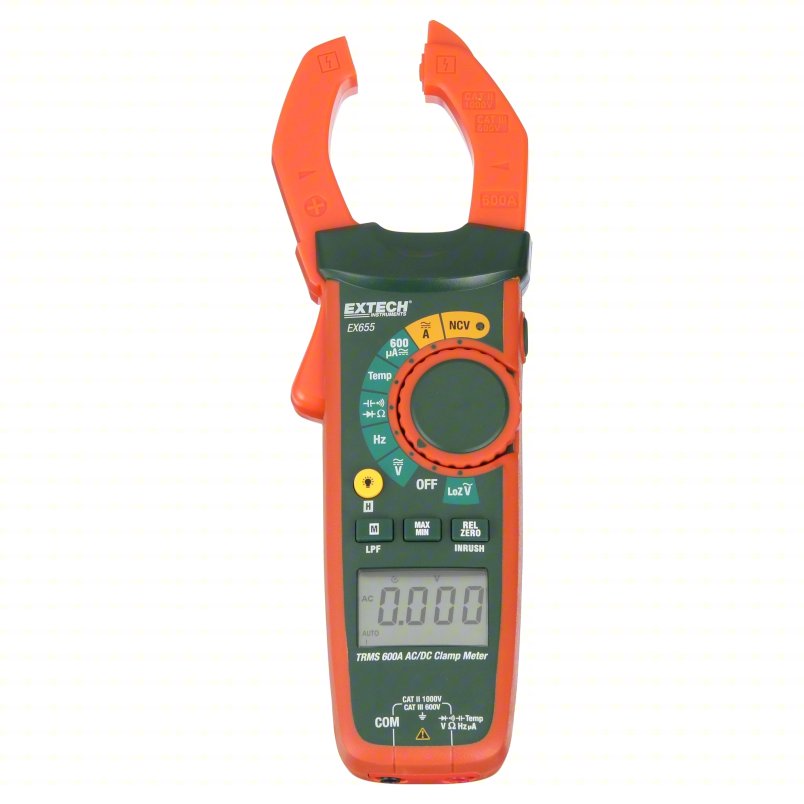

EXTECH Digital Clamp Meter: Clamp-Jaw Jaw, CAT II 1000V/CAT III 600V, TRMS, 600 A Max. AC Current
EXTECH Digital Clamp Meter: Clamp-Jaw Jaw, CAT II 1000V/CAT III 600V, TRMS, 600 A Max. AC Current
Regular price
$195.81 USD
Regular price
Sale price
$195.81 USD
Quantity
Couldn't load pickup availability
Product Details
- Catalog Page
- 518
- Brand
- EXTECH
- Jaw Style
- Clamp-Jaw
- Safety Rating
- CAT II 1000V; CAT III 600V
- AC Response Calculation
- TRMS
- Calibration Certificate Included
- No
- Max. AC Current
- 600 A
- Max. DC Current
- 600 A
- Max. AC Voltage
- 750 V
- Max. DC Voltage
- 1,000 V
- Parameters Measured
- AC Voltage
- DC Voltage
- AC Current
- DC Current
- Capacitance
- Continuity
- Diode
- Frequency
- Inrush AC Current
- Resistance
- Temperature (K)
- Bluetooth Compatible
- No
- Current Leakage Testing
- No
- Data Logging
- Yes
- Dustproof
- No
- Instrument Counts
- 6,000
- Intrinsically Safe
- No
- Removable Screen
- No
- Thermal Imaging
- No
- Waterproof
- No
- Max. Resistance
- 60 megaohm
- Auto Ranging
- Yes
- Audible Continuity
- Yes
- Jaw Opening
- 1.18 in
- Data Hold
- Yes
- Display Type
- Backlit LCD
- Inrush
- Yes

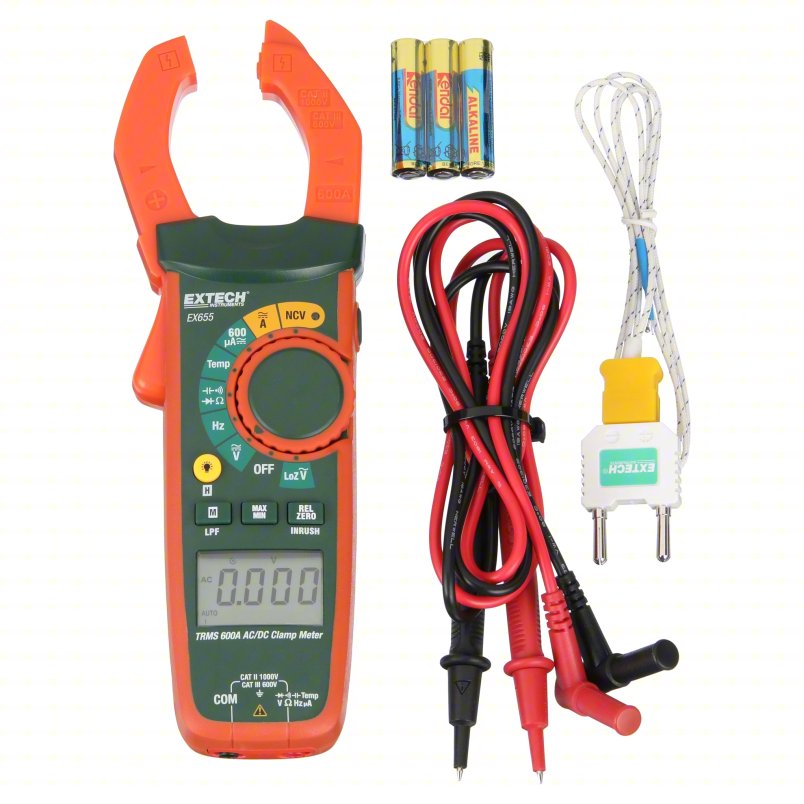

- Includes
- (3) AAA Batteries; General Purpose Bead Wire Temperature Probe; Test Leads
- Manufacturer Part Number
- EX655
- Battery Size
- AAA
- AC Current Measurement Resolution
- 0.1 uA; 0.01 A
- AC Voltage Measurement Resolution
- 1 mV
- DC Current Measurement Resolution
- 0.1 uA
- DC Voltage Measurement Resolution
- 0.1 mV
- Capacitance Measurement Resolution
- 0.01 nF
- Resistance Measurement Resolution
- 0.1 ohm
- Frequency Measurement Resolution
- 0.01 Hz
- Basic AC Current Accuracy
- ±2.50%
- Basic AC Voltage Accuracy
- ±1.50%
- Basic DC Current Accuracy
- ±2.50%
- Basic DC Voltage Accuracy
- ±1.00%
- Capacitance Measurement Accuracy
- ±10.00%
- Frequency Measurement Accuracy
- ±0.10%
- Resistance Measurement Accuracy
- ±1.50%
- Manufacturers Warranty Length
- 3 yr
- Calibration Frequency
- 50 to 60 Hz
- Diode Test
- Yes
- Peak Hold
- No
- Standards
- CE; cULus
- Frequency Counter
- 10 Hz to 1 MHz
- Maximum Capacitance Measurement
- 60 mF
- Maximum Conductor Size
- 350MCM
- Non-Contact Voltage Detector
- Yes
- Bar Graph Included
- Yes
- Memory
- Max/Min
- Thermometer Type
- Type K Thermocouple
- Minimum AC Current Measurement
- 60 A
- Minimum DC Current Measurement
- 60 A
- Minimum AC Voltage Measurement
- 6 V
- Minimum DC Voltage Measurement
- 600 mV
- Minimum Resistance Measurement
- 6 ohm
- Auto Power Off
- Yes
- Batteries Included
- Yes
- Battery Access
- Yes
- Maximum Frequency Measurement
- 1 MHz
- Maximum Operating Temperature
- 122 °F
- Maximum Storage Temperature
- 140 °F
- Minimum Capacitance Measurement
- 60 nF
- Minimum Frequency Measurement
- 10 Hz
- Minimum Operating Temperature
- 32 °F
- Minimum Storage Temperature
- -4 °F
- Overall Height
- 1.6 in
- Overall Width
- 3 in
- UNSPSC
- 41113648
- Country of Origin
- China (subject to change)
- Product Description
Clamp-jaw meters have iron jaws sheathed in plastic that fasten around different types of conductors to measure electrical current. These instruments show measurements on a large digital display.
