Supply Pros Plus

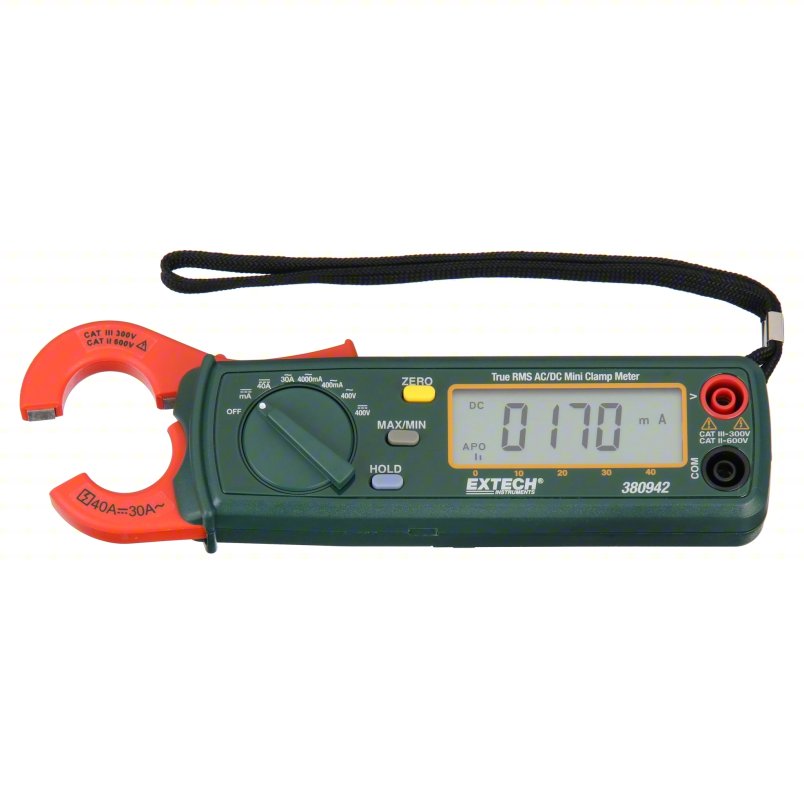

EXTECH Digital Clamp Meter: Clamp-Jaw Jaw, CAT III 300V, TRMS, 30 A Max. AC Current, 380942
EXTECH Digital Clamp Meter: Clamp-Jaw Jaw, CAT III 300V, TRMS, 30 A Max. AC Current, 380942
Regular price
$538.04 USD
Regular price
Sale price
$538.04 USD
Quantity
Couldn't load pickup availability
Product Details
- Catalog Page
- 518
- Brand
- EXTECH
- Jaw Style
- Clamp-Jaw
- Safety Rating
- CAT III 300V
- AC Response Calculation
- TRMS
- Calibration Certificate Included
- No
- Max. AC Current
- 30 A
- Max. DC Current
- 40 A
- Max. AC Voltage
- 400 V
- Max. DC Voltage
- 400 V
- Parameters Measured
- AC Voltage
- DC Voltage
- AC Current
- DC Current
- Bluetooth Compatible
- No
- Current Leakage Testing
- No
- Data Logging
- Yes
- Dustproof
- No
- Instrument Counts
- 4,000
- Intrinsically Safe
- No
- Removable Screen
- No
- Thermal Imaging
- No
- Waterproof
- No
- Auto Ranging
- No
- Audible Continuity
- No
- Jaw Opening
- 0.9 in
- Data Hold
- Yes
- Display Type
- LCD
- Inrush
- No

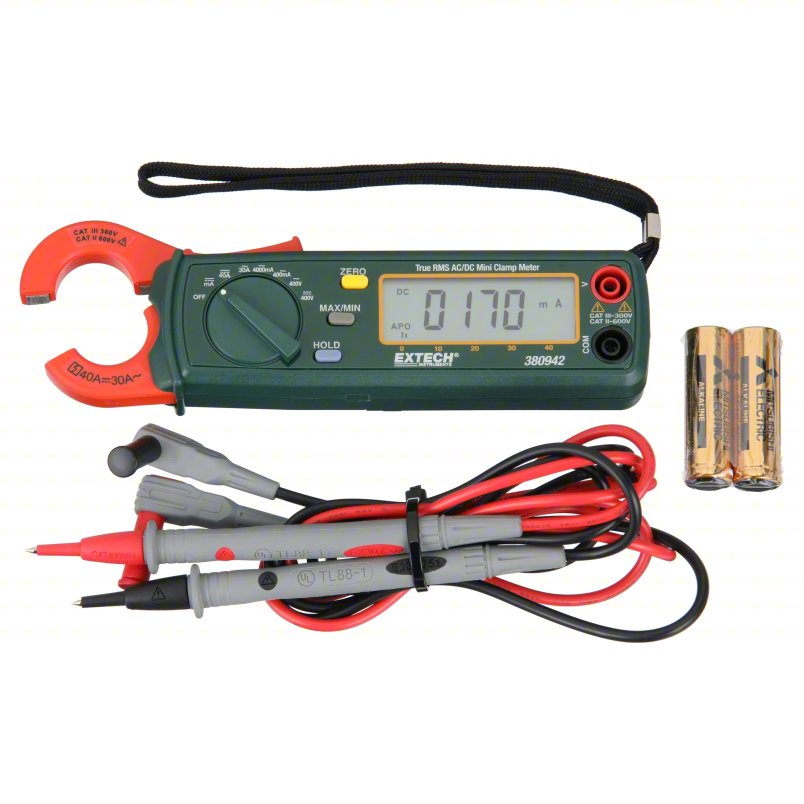

- Includes
- (2) AAA Batteries; Soft Carrying Case; Test Leads
- Manufacturer Part Number
- 380942
- Battery Size
- AAA
- AC Current Measurement Resolution
- 4 A
- AC Voltage Measurement Resolution
- 0.1 V
- DC Current Measurement Resolution
- 4 A
- DC Voltage Measurement Resolution
- 0.1 V
- Basic AC Current Accuracy
- ±2.50%
- Basic AC Voltage Accuracy
- ±2.00%
- Basic DC Current Accuracy
- ±2.00%
- Basic DC Voltage Accuracy
- ±1.00%
- Manufacturers Warranty Length
- 2 yr
- Calibration Frequency
- 60 Hz
- Diode Test
- No
- Peak Hold
- No
- Standards
- CE; cULus
- Maximum Conductor Size
- 4/0 AWG
- Non-Contact Voltage Detector
- No
- Bar Graph Included
- Yes
- Memory
- Max/Min
- Minimum AC Current Measurement
- 400 mA
- Minimum DC Current Measurement
- 4 A
- Auto Power Off
- Yes
- Batteries Included
- Yes
- Battery Access
- Yes
- Maximum Operating Temperature
- 122 °F
- Maximum Storage Temperature
- 140 °F
- Minimum Operating Temperature
- 4 °F
- Minimum Storage Temperature
- -4 °F
- Overall Height
- 1.3 in
- Overall Width
- 1.8 in
- UNSPSC
- 41113648
- Country of Origin
- Taiwan (subject to change)
- Product Description

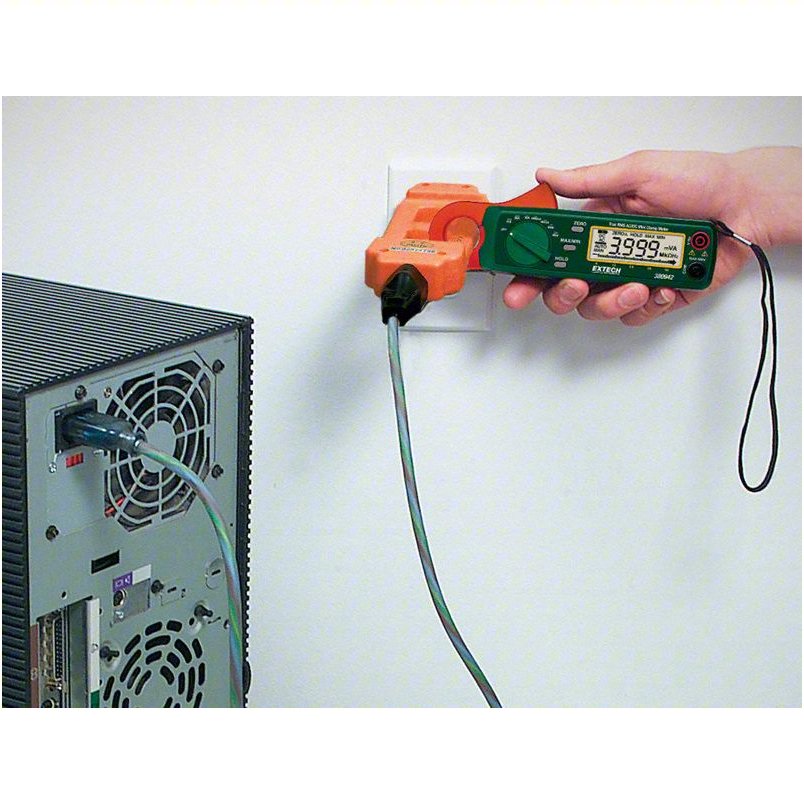

Clamp-jaw meters have iron jaws sheathed in plastic that fasten around different types of conductors to measure electrical current. These instruments show measurements on a large digital display.
