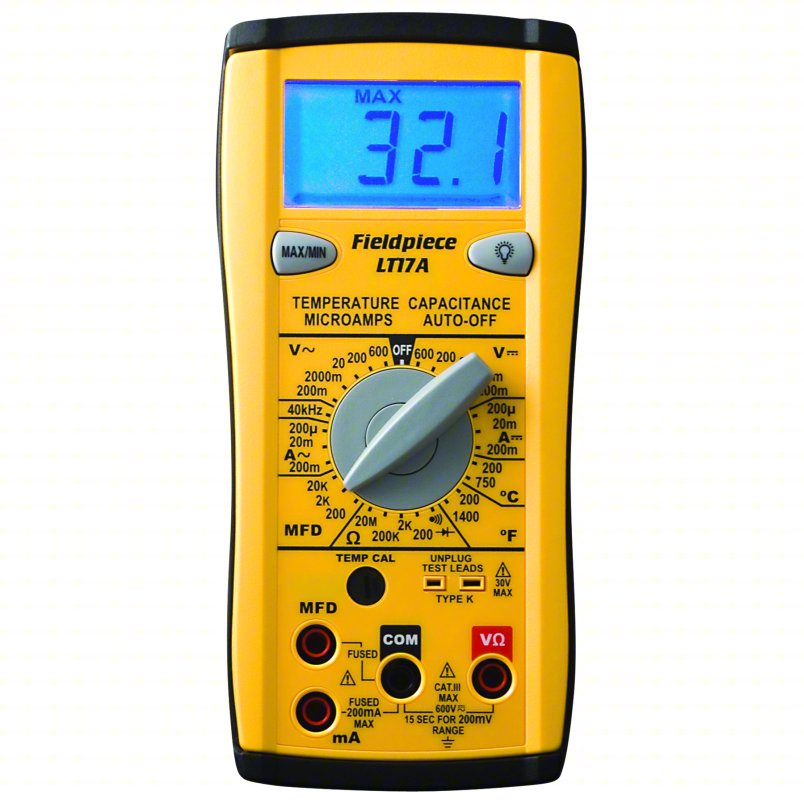

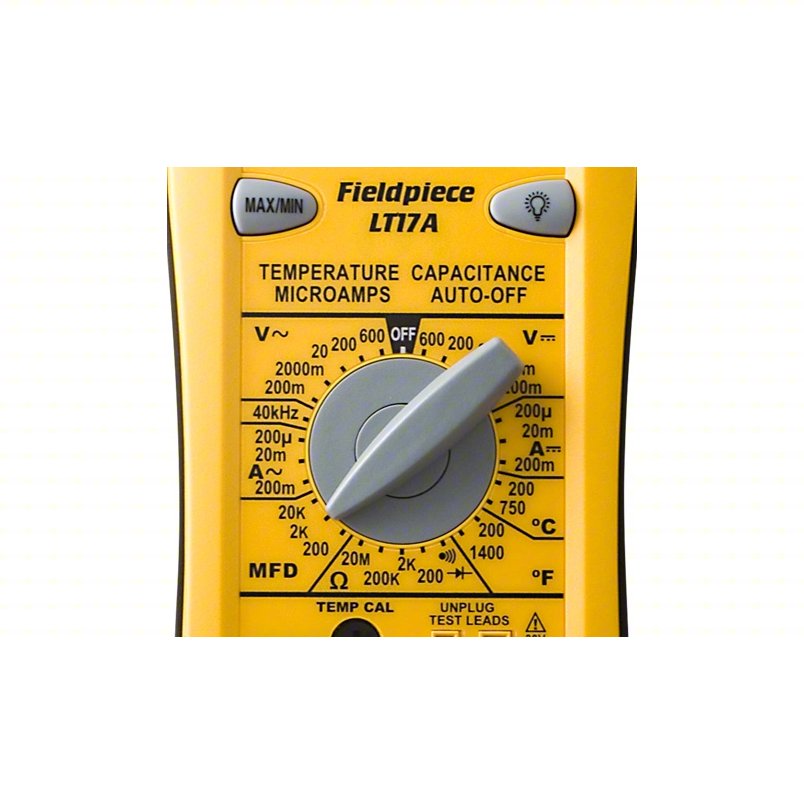

FIELDPIECE Digital Multimeter: TRMS, CAT III 600V, CAT III 600V, 200 mA Max AC Current Measurement
FIELDPIECE Digital Multimeter: TRMS, CAT III 600V, CAT III 600V, 200 mA Max AC Current Measurement
Regular price
$204.24 USD
Regular price
Sale price
$204.24 USD
Quantity
Couldn't load pickup availability
Product Details
- Catalog Page
- N/A
- Brand
- FIELDPIECE
- AC Response Calculation
- TRMS
- Instrument Safety Rating
- CAT III 600V
- Calibration Certificate Included
- No
- Parameters Measured
- AC Voltage
- DC Voltage
- AC Current
- DC Current
- Capacitance
- Diode
- Frequency
- Resistance
- Temperature
- Includes
- 400A Amp Clamp Accessory (ACH4); 9V Battery (Installed); Classic Style Clamp Meter With Temperature (LT17A); Deluxe Silicone Test Leads (ADLS2); Mail Pouch-Style Instrument Case (ANC5); Short Alligator Lead Extensions (ASA2); Wrap Tab Bead Tip Thermocouple (ATB1)
- Maximum AC Current Measurement
- 200 mA
- Maximum AC Voltage Measurement
- 600 V
- Maximum DC Voltage Measurement
- 600 V
- Maximum DC Current Measurement
- 200 mA
- Data Hold
- Yes
- Manufacturer Part Number
- LT17A
- Min-Max-Avg Button Included
- Yes
- Batteries Included
- Yes
- Fuse Access
- Yes
- Battery Voltage
- 9V
- Temperature Measurement Resolution
- 0.1 °F
- Audible Continuity
- Yes
- AC Current Measurement Resolution
- 0.1 uA
- AC Voltage Measurement Resolution
- 0.1 mV
- Auto Power Off
- Yes
- Auto Ranging
- No
- Basic AC Current Accuracy
- 1.50% ± 4
- Basic AC Voltage Accuracy
- 1.20% ± 4 (200mV to 20V Ranges); 2% ± 4 (200V and 600V Ranges)
- Basic DC Current Accuracy
- 1% ± 1
- Basic DC Voltage Accuracy
- 0.50% ± 1
- Battery Access
- Yes
- Battery Size
- 9V
- Capacitance Measurement Accuracy
- 4% ± 10
- Capacitance Measurement Resolution
- 0.1 uF
- DC Current Measurement Resolution
- 0.1 uA
- DC Voltage Measurement Resolution
- 0.1 mV
- Diode Test
- Yes
- Frequency Measurement Accuracy
- 0.10% ± 3
- Frequency Measurement Resolution
- 1 Hz
- Maximum Capacitance Measurement
- 20,000 uF
- Maximum Frequency Measurement
- 40 kHz
- Maximum Operating Temperature
- 122 °F
- Maximum Resistance Measurement
- 20 megaohm
- Maximum Storage Temperature
- 140 °F
- Minimum Operating Temperature
- 32 °F
- Minimum Storage Temperature
- -4 °F
- Resistance Measurement Accuracy
- 1% ± 4 (200 ohm to 200 kiloohm Range); 2% ± 4 (20 megaohm Range)
- Resistance Measurement Resolution
- 0.1 ohm
- Special Features
- Auto-Off - Off After 25 Minutes to Extend Battery; Over Range - "OL" or "-OL" is Displayed
- Standards
- CE; IEC 61010-1 (EN61010-1)
- Temperature Measurement Accuracy
- ±0.5°C; ±1% + 1.5°F; ±1% + 1°C; ±1°F; ±3% + 2°C; ±3% + 4°F
- Manufacturers Warranty Length
- 1 yr
- Maximum Temperature Measurement
- 1,400 °F
- Minimum Temperature Measurement
- -30 °F
- UNSPSC
- 0
- Country of Origin
- Taiwan (subject to change)
- Product Description
These kits include a digital multimeter to measure electrical currents. They contain matching accessory items for use in commercial, industrial, and residential areas.
