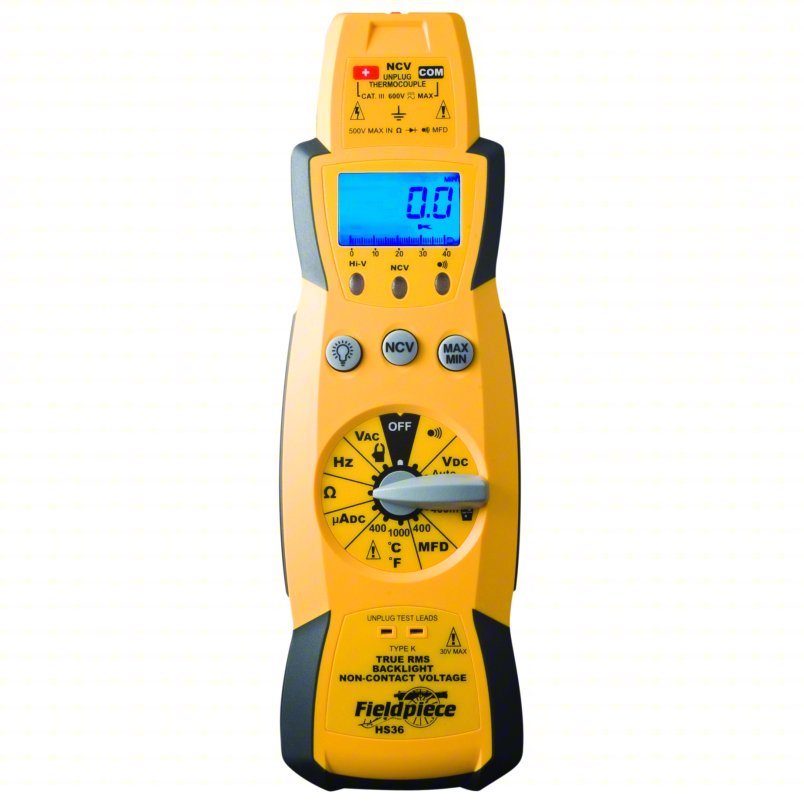

FIELDPIECE Multimeter: TRMS, Waterproof, 3,999, CAT III 600V, CAT III 600V, Compact Multimeter
FIELDPIECE Multimeter: TRMS, Waterproof, 3,999, CAT III 600V, CAT III 600V, Compact Multimeter
Regular price
$362.42 USD
Regular price
Sale price
$362.42 USD
Quantity
Couldn't load pickup availability
Product Details
- Catalog Page
- N/A
- Brand
- FIELDPIECE
- AC Response Calculation
- TRMS
- Instrument Safety Rating
- CAT III 600V
- Calibration Certificate Included
- No
- Instrument Counts
- 3,999
- Parameters Measured
- AC Voltage
- DC Voltage
- DC Current
- Capacitance
- Frequency
- Resistance
- Temperature
- Includes

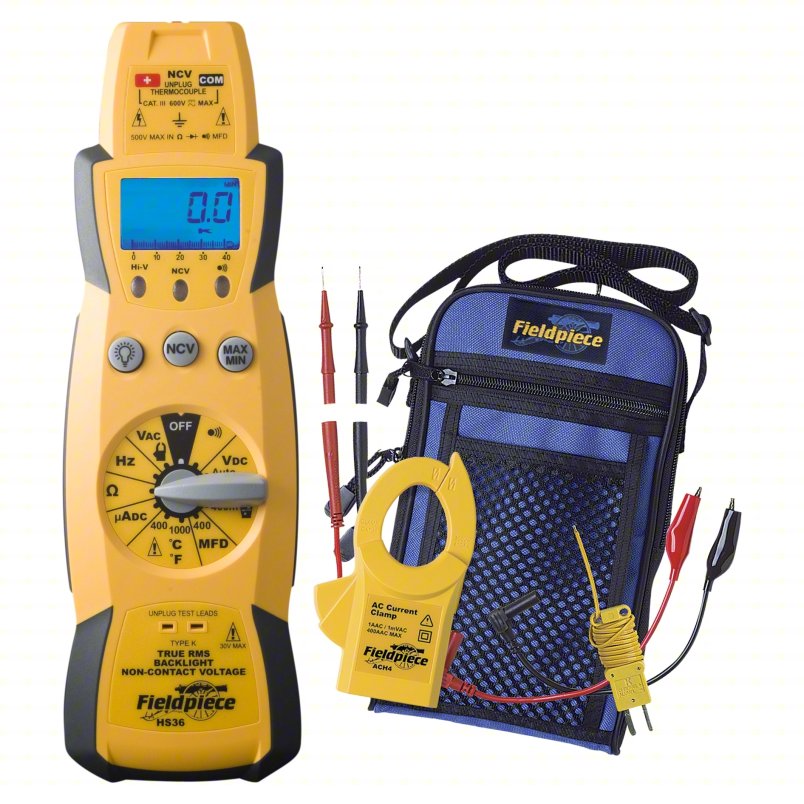

- 9V Battery; ACH4 400 A Clamp Accessory; ADLS2 Deluxe Silicone Test Leads; ANC1 Deluxe Meter Case; ASA2 Short Alligator Lead Extensions; HS36 Expandable True RMS Stick Multimeter With Backlight
- Maximum AC Voltage Measurement
- 600 V
- Maximum DC Voltage Measurement
- 600 V
- Maximum DC Current Measurement
- 4,000 uA
- Waterproof
- Yes
- Multimeter Style
- Compact
- Display Type
- LCD
- Manufacturer Part Number
- HS36
- Min-Max-Avg Button Included
- Yes
- Batteries Included
- Yes
- Fuse Access
- Yes
- Battery Voltage
- 9V
- Temperature Measurement Resolution
- 0.1 °F
- Audible Continuity
- Yes
- AC Voltage Measurement Resolution
- 0.1 mV
- Auto Power Off
- Yes
- Auto Ranging
- Yes
- Bar Graph Included
- Yes
- Basic AC Voltage Accuracy
- ±1.20% Reading + 5 Digit (400 mV Range 50 to 60 Hz); ±1.50% Reading + 5 Digit; ±2% Reading + 5 Digit (on 600 V Range)
- Basic DC Current Accuracy
- ±1% Reading + 2 Digit
- Basic DC Voltage Accuracy
- ±0.50% Reading + 2 Digit
- Battery Access
- Yes
- Battery Chemistry
- Alkaline
- Battery Size
- 9V
- Capacitance Measurement Accuracy
- ±3% Reading + 5 Digit
- Capacitance Measurement Resolution
- 0.1 uF
- DC Current Measurement Resolution
- 0.1 uA
- DC Voltage Measurement Resolution
- 0.1 mV
- Diode Test
- Yes
- Frequency Measurement Accuracy
- ±0.10% Reading + 3 Digit
- Frequency Measurement Resolution
- 1 Hz
- Maximum Capacitance Measurement
- 400 uF
- Maximum Frequency Measurement
- 40 MHz
- Maximum Operating Temperature
- 122 °F
- Maximum Resistance Measurement
- 40 megaohm
- Maximum Storage Temperature
- 140 °F
- Minimum Operating Temperature
- 32 °F
- Minimum Storage Temperature
- -4 °F
- Resistance Measurement Accuracy
- ±1% Reading + 4 Digit (400 ohm to 400 kiloohm); ±1.50% Reading + 4 Digit (4 megaohm); ±3% Reading + 5 Digit (40 megaohm)
- Resistance Measurement Resolution
- 0.1 ohm
- Special Features
- Auto Power Off - 30 Minutes; Over Range - "OL" Mark Indication
- Standards
- CE; IEC 61010-1 (EN61010-1); UL; UL 61010-1
- Temperature Measurement Accuracy
- ±1% + 1.5°F; ±1°F; ±2% + 4°F
- Duty Cycle
- <70%; >30%
- Manufacturers Warranty Length
- 1 yr
- Maximum Temperature Measurement
- 1,000 °F
- Minimum Temperature Measurement
- -30 °F
- UNSPSC
- 0
- Country of Origin
- Taiwan (subject to change)
- Product Description
These kits include a digital multimeter to measure electrical currents. They contain matching accessory items for use in commercial, industrial, and residential areas.
