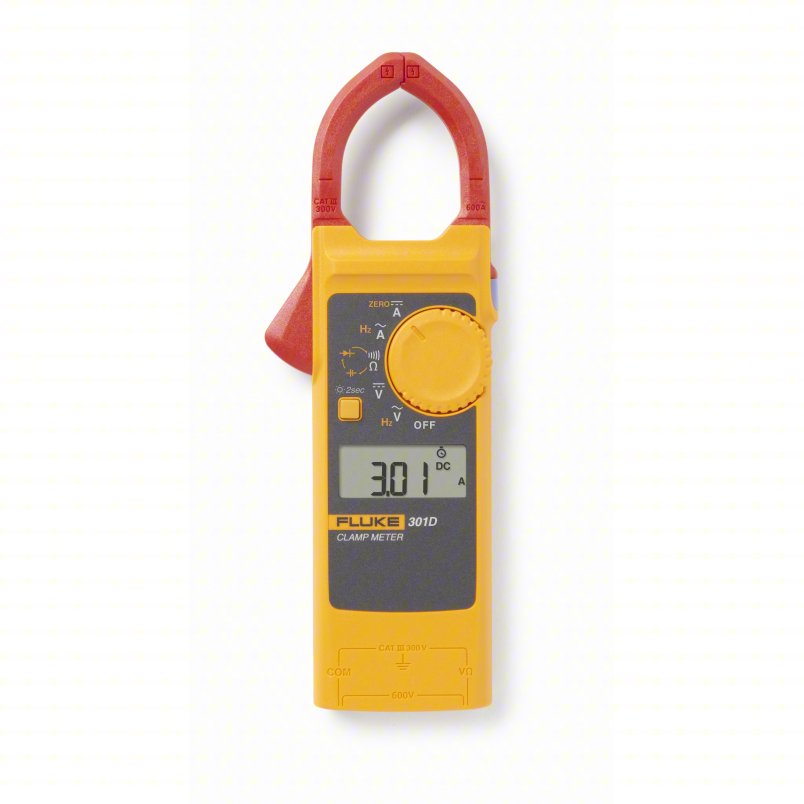

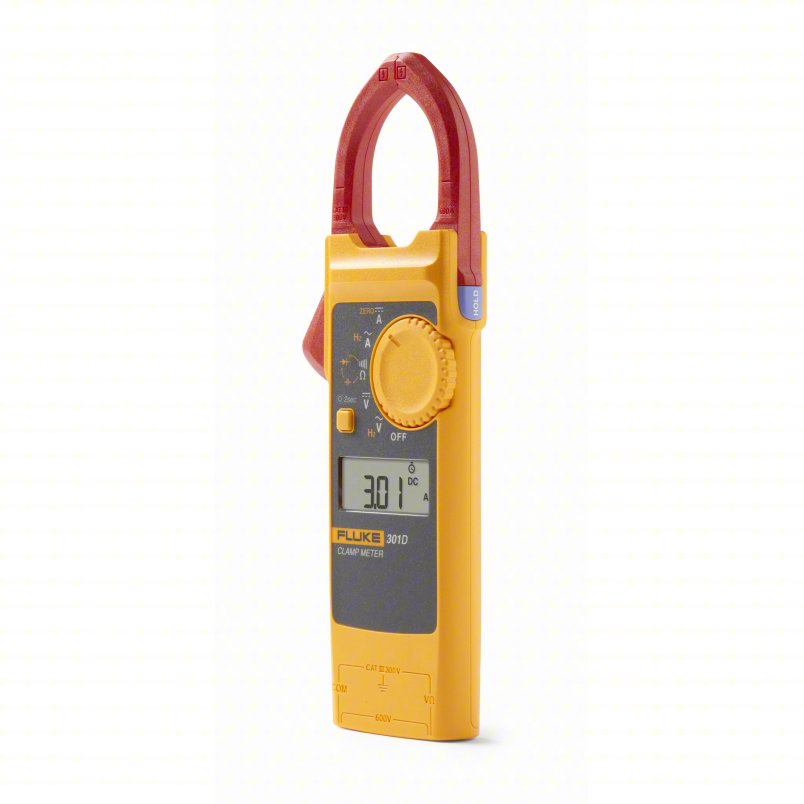

FLUKE Digital Clamp Meter: Clamp-Jaw Jaw, CAT III 300V, Avg, 600 A Max. AC Current, FLUKE-301D/ESP
FLUKE Digital Clamp Meter: Clamp-Jaw Jaw, CAT III 300V, Avg, 600 A Max. AC Current, FLUKE-301D/ESP
Regular price
$135.99 USD
Regular price
Sale price
$135.99 USD
Quantity
Couldn't load pickup availability
Product Details
- Catalog Page
- N/A
- Brand
- FLUKE
- Jaw Style
- Clamp-Jaw
- Safety Rating
- CAT III 300V
- AC Response Calculation
- Average
- Calibration Certificate Included
- No
- Max. AC Current
- 600 A
- Max. DC Current
- 600 A
- Max. AC Voltage
- 600 V
- Max. DC Voltage
- 600 V
- Parameters Measured
- AC Voltage
- DC Voltage
- AC Current
- DC Current
- Capacitance
- Diode
- Frequency
- Resistance
- Bluetooth Compatible
- No
- Current Leakage Testing
- No
- Data Logging
- No
- Dustproof
- No
- IP Rating
- IP30
- Instrument Counts
- 6000
- Intrinsically Safe
- No
- Removable Screen
- No
- Thermal Imaging
- No
- Waterproof
- No
- Max. Resistance
- 60 kiloohm
- Audible Continuity
- Yes
- Jaw Opening
- 1.34 in
- Data Hold
- Yes
- Display Type
- LCD
- Manufacturer Part Number
- FLUKE-301D/ESP
- Voltage
- 1.5V
- Battery Size
- AAA
- AC Current Measurement Resolution
- 0.01 A
- AC Voltage Measurement Resolution
- 0.1 V
- DC Current Measurement Resolution
- 0.01 A
- DC Voltage Measurement Resolution
- 0.1 V
- Capacitance Measurement Resolution
- 0.001 uF
- Frequency Measurement Resolution
- 0.001 Hz
- Basic AC Current Accuracy
- 2.0% ± 10 digits
- Basic AC Voltage Accuracy
- 1.5% ± 5 digits
- Basic DC Current Accuracy
- 2.0% ± 10 digits
- Basic DC Voltage Accuracy
- 1.0% ± 5 digits
- Capacitance Measurement Accuracy
- 2.0% ± 5 digits
- Frequency Measurement Accuracy
- 0.1% ± 3 digits
- Resistance Measurement Accuracy
- 1.0% ± 5 digits
- Manufacturers Warranty Length
- 1 yr
- Diode Test
- Yes
- Standards
- IEC 61010-1; IEC 61326-1; IEC61010-2-032
- Frequency Counter
- 45 to 400 Hz
- Maximum Capacitance Measurement
- 999.9 uF
- Minimum AC Current Measurement
- 60 A
- Minimum DC Current Measurement
- 60 A
- Minimum Resistance Measurement
- 600 ohm
- Auto Power Off
- Yes
- Batteries Included
- Yes
- Battery Access
- Yes
- Battery Chemistry
- Alkaline
- Maximum Frequency Measurement
- 99.99 kHz
- Maximum Operating Temperature
- 122 °F
- Maximum Storage Temperature
- 140 °F
- Minimum Capacitance Measurement
- 9.999 uF
- Minimum Frequency Measurement
- 9.999 Hz
- Minimum Operating Temperature
- 14 °F
- Minimum Storage Temperature
- -22 °F
- Multiple On-Screen Displays
- Yes
- Overall Height
- 7.5 in
- Overall Width
- 2.1 in
- UNSPSC
- 0
- Country of Origin
- China (subject to change)
- Product Description
Clamp-jaw meters have iron jaws sheathed in plastic that fasten around different types of conductors to measure electrical current. These instruments show measurements on a large digital display.
