Supply Pros Plus

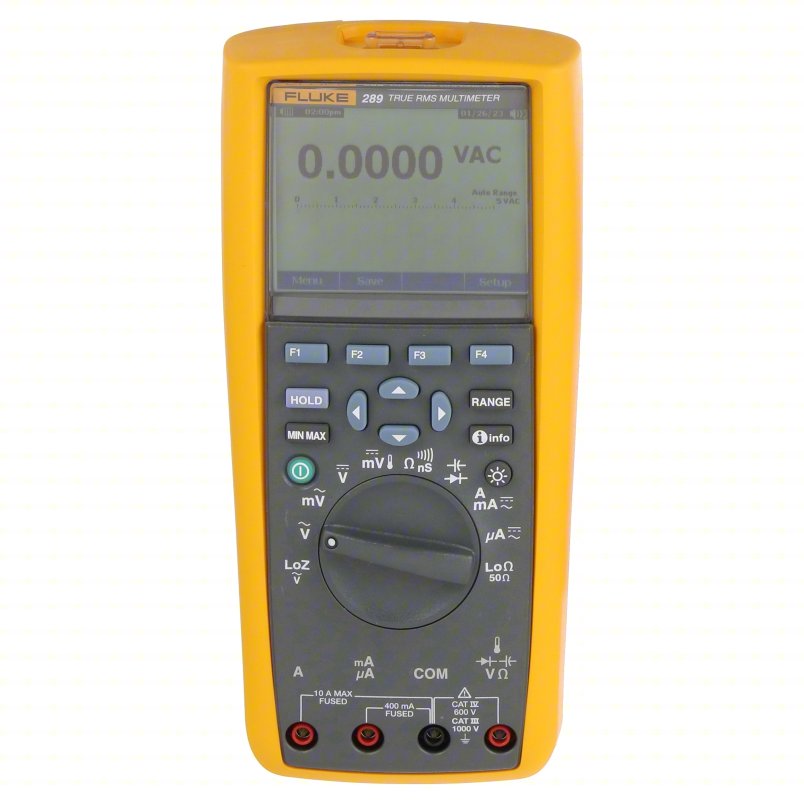

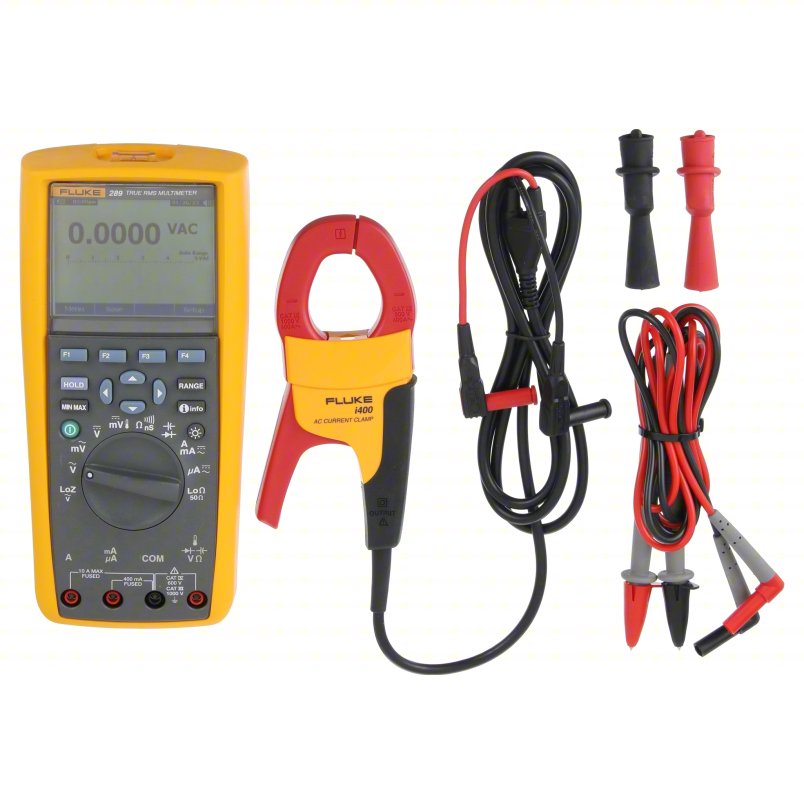

FLUKE Digital Multimeter: TRMS, Alligator Clips/Current Clamp/Test Lead Set, 6,000
FLUKE Digital Multimeter: TRMS, Alligator Clips/Current Clamp/Test Lead Set, 6,000
Regular price
$1,180.80 USD
Regular price
Sale price
$1,180.80 USD
Quantity
Couldn't load pickup availability
Product Details
- Catalog Page
- 515
- Brand
- FLUKE
- AC Response Calculation
- TRMS
- Instrument Safety Rating
- CAT III 1000V; CAT IV 600V
- Calibration Certificate Included
- No
- Instrument Counts
- 6,000
- Parameters Measured
- AC Voltage
- DC Voltage
- AC Current
- DC Current
- Capacitance
- Frequency
- Resistance
- Temperature (K)
- Includes
- Alligator Clips; Current Clamp; Test Lead Set
- Maximum AC Current Measurement
- 400 A
- Maximum AC Voltage Measurement
- 1,000 V
- Maximum DC Voltage Measurement
- 1,000 V
- Maximum DC Current Measurement
- 400 A
- Bluetooth Compatible
- Yes
- Dustproof
- No
- Intrinsically Safe
- No
- Removable Screen
- No
- Thermal Imaging
- No
- Waterproof
- No
- Data Logging
- Yes
- Data Hold
- Yes
- Multimeter Style
- Full Size
- Display Type
- LCD
- Manufacturer Part Number
- FLUKE-289/IMSK
- Min-Max-Avg Button Included
- Yes
- Pulse Width
- Yes
- True RMS Bandwidth
- 100 kHz
- Fuse Access
- Yes
- NIST Certification By Manufacturer
- Not Certified
- Elapse Time Clock
- Yes
- Multiple On-Screen Displays
- Yes
- Time of Day Clock
- Yes
- Audible Continuity
- Yes
- AC Current Measurement Resolution
- 500 uA
- AC Voltage Measurement Resolution
- 50 V
- Auto Power Off
- Yes
- Auto Ranging
- Yes
- Bar Graph Included
- Yes
- Basic AC Current Accuracy
- ±0.6%
- Basic AC Voltage Accuracy
- ±0.4%
- Basic DC Current Accuracy
- ±0.05%
- Basic DC Voltage Accuracy
- ±0.025% + 2 Digits
- Battery Access
- Yes
- Battery Chemistry
- Alkaline
- Battery Size
- AA
- Capacitance Measurement Accuracy
- 1.00 %
- Capacitance Measurement Resolution
- 1 nF
- Computer Interface Connection Type
- USB
- DC Current Measurement Resolution
- 500 uA
- DC Voltage Measurement Resolution
- 50 V
- Depth
- 2.4 in
- Diode Test
- Yes
- Frequency Measurement Accuracy
- 0.005 %
- Frequency Measurement Resolution
- 99.999 Hz
- Maximum Capacitance Measurement
- 1,000 nF
- Maximum Frequency Measurement
- 999.99 kHz
- Maximum Operating Temperature
- 131 °F
- Maximum Resistance Measurement
- 500 megaohm
- Maximum Storage Temperature
- 140 °F
- Minimum Operating Temperature
- -4 °F
- Minimum Storage Temperature
- -40 °F
- Minimum/Maximum Memory
- Yes
- Overall Height
- 8.8 in
- Overall Width
- 4 in
- Resistance Measurement Accuracy
- ±0.05%
- Resistance Measurement Resolution
- 50 ohm
- Software Included
- No
- Special Features
- Low Pass Filter for Accurate Voltage and Frequency Measurements; Zoom on Trend Provides Unprecedented Ability to View and Analyze Trend, Capture Data
- Standards
- CE
- Temperature Measurement Accuracy
- 1.00 %
- Weight
- 28 oz
- Duty Cycle
- Yes
- Manufacturers Warranty Length
- 1 yr
- Maximum Temperature Measurement
- 732 °F
- Minimum Temperature Measurement
- -128 °F
- Capacity
- 2.24 Ah
- Current Leakage Testing
- No
- UNSPSC
- 41113630
- Country of Origin
- USA (subject to change)
- Product Description
These kits include a digital multimeter to measure electrical currents. They contain matching accessory items for use in commercial, industrial, and residential areas.
